VPCart Store Locator

Created : 24 March 2023
Last Modified : 24 March 2023

***********************************************************************************
Contents:

A. SUMMARY
B. FILE STRUCTURE
C. INSTALLATION INSTRUCTION
D. HOW IT WORKS
E. CONFIGURATION SETTINGS
F. DATABASE TABLES MODIFIED
G. LANGUAGE SETTINGS CHANGED
H. CHANGE LOGS
I. TROUBLESHOOTING
J. FAQ
K. COPYRIGHT NOTICE
L. TERMS AND CONDITIONS


***********************************************************************************

A. SUMMARY
==========

VPCart Storelocator streamlines the process of guiding customers to your store locations, dealers, or distributors via desktop, mobile, or tablet devices, utilizing Google maps and directions. It allows you to add locations from anywhere in the world to increase your global reach.


Key features of VPCart Storelocator include:


***********************************************************************************

B. FILE STRUCTURE
===================

Files included in the zip are:
- $READ_ME_FIRST_storelocator900.HTML
- shoplocator.asp
- admin/storelocator_setup.asp
- admin/storelocator_setup_config.asp
- admin/storelocator_setup_process.asp
- admin/help/shoph_editrecord.asp
- admin/sqlscripts/storelocator/*

***********************************************************************************

C. INSTALLATION INSTRUCTION
============================

1. Upload below files to your VPCart site:
- shoplocator.asp
- admin/storelocator_setup.asp
- admin/storelocator_setup_config.asp
- admin/storelocator_setup_process.asp
- admin/help/shoph_editrecord.asp
- admin/sqlscripts/storelocator/*

2. Log into super admin and execute page below:
http://www.yourdomain.com/<your admin folder>/storelocator_setup.asp

Note: Replace the below with your VPCart site
{ www.yourdomain.com } : your site domain
{ your admin folder } : your admin folder

Click Install Now button.
On this installation process, A new table storelocator will be created.
Also a new config xstorelocator_enable will be added.
Please make sure to set this config xstorelocator_enable = Yes.

3. You will need to add a new admin menu for the Store Locator.

3a. Go to: Advanced Settings > Admin Navigation > Level 2 >
3b. In the " " dropdowns, please select: Store
3c. Then in the bottom form menu, please add this new menu:

Name: Store Locator
File Name: shopa_editdisplay.asp?table=storelocator
: Store Locator
: 09

3d. Click Add New Menu.
3e. Go to: Advanced Settings > Admin User Management > You should see the list of your admin users.
3f. Click edit for an admin user you want.

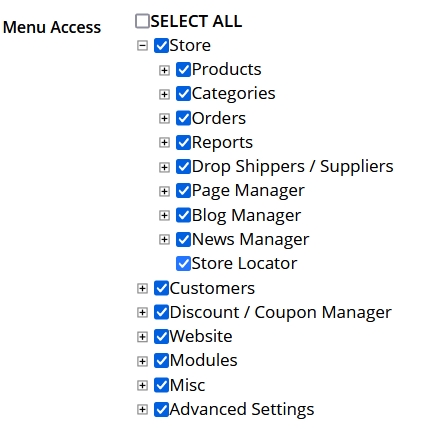

3g. In the " " Expand the Store, then tick/check the new menu "Store Locator"

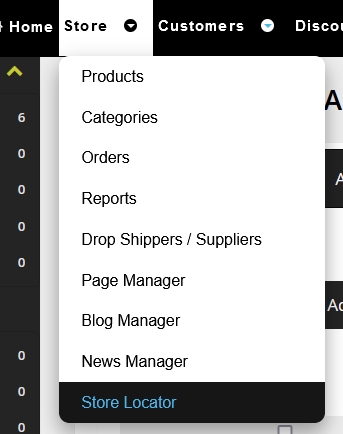

3h. You can now see the new menu "Store Locator" under the Store dropdowns.



4. You will need to add a new front store menu for the Store Locator.
4a. Go to admin menu: Website > Menu Manager
4b. Click Add.
4c. Fill in new menu below:

: Custom
: Store Locator
URL: shoplocator.asp
Sequence Number: 80

4d. Click Submit button.

5. Open your file shopa_editrecord.asp located in your admin folder, using a notepad or text editor.
5a. Locate this code:

elseif (lcase(DBTable) = "gifts") then

5b. BEFORE the code above, please insert this:

elseif (lcase(DBTable) = "storelocator") then
helpstring = ""
select case lcase(fieldname)
case "storename"
helpstring = "document.all.help_storelocator_storename"
case "storelocation"
helpstring = "document.all.help_storelocator_storelocation"
case "storephone"
helpstring = "document.all.help_storelocator_storephone"
case "storeemail"
helpstring = "document.all.help_storelocator_storeemail"
case "storegmapaddress"
helpstring = "document.all.help_storelocator_storegmapaddress"
end select

5c. Save the file and upload back to your site.

6. Please make sure the following existing Google Maps configs to be set:

xGoogleMap = Yes
xGoogleMapAPIKey: Enter your Google Map Api Key.
Go to https://developers.google.com/maps/faq?csw=1#using-google-maps-apis to learn how to generate Google Map API key.
xGoogleMapZoomLevel = enter a zoom level. Default is 14.

7. This is optional. If you want your Store Locator page in front store to show without the left / right column so that the Google Map can display bigger, follow these:

7a. Go to admin menu: Website > Layout Manager >

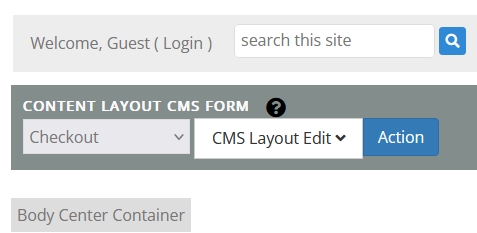

7b. Locate "CONTENT LAYOUT CMS FORM " > Choose Checkout on first dropdowns then on next dropdown choose Edit.



7c. Click Action button.

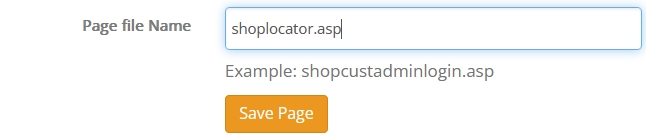

7d. In the , enter shoplocator.asp and click Save Page button

.
7e. Click Save Changes.

8. Last change, you will need to update a CSS file. Please follow these:
8a. Open file main-responsive.css located in templates/default/css folder using a notepad or text editor.
8b. Locate this code:

#contactgooglemap #googlemap {
width: 100% !important;
}

8c. Directly BELOW it, please insert:

#contactgooglemap .googlemap {
width: 100% !important;
}

8d. Save the file and upload back to your site.

9. You are done.

***********************************************************************************

D. HOW IT WORKS
===============

You can start adding new store location from your administration after you have follow the installation above.
Go to admin menu: Store > Store Locator

Click Add a record button.

Then enter the details for your first store eg:

storename : Enter your store name eg VantageZ
storelocation : Enter your store address eg 123 Main St, Beverly Hills, CA US 90210
storephone : Enter your store phone eg 1-572-416-8988
storeemail : Enter your store email eg [email protected]
storegmapaddress : On your computer, open Google Maps, search your store, then Right-click your store on the map. You can find your latitude and longitude in decimal format at the top. Your value should be in format eg 38.8440851500402, -104.76223188726334

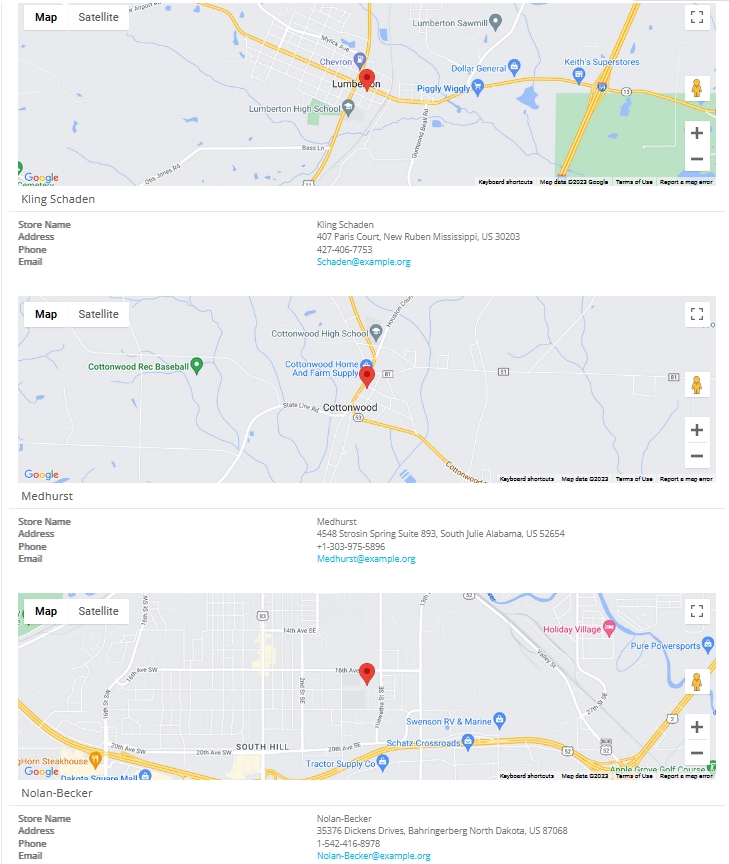

To view the store locator just load the page shoplocator.asp in your front store.

***********************************************************************************

E. CONFIGURATION SETTINGS
=================
xstorelocator_enable

F. DATABASE TABLES MODIFIED
===========================
New table storelocator with fields below:
[id] primary key
[storename] [nvarchar] (255)
[storelocation] [nvarchar] (4000)
[storephone] [nvarchar] (30)
[storeemail] [nvarchar] (255)
[storegmapaddress] [nvarchar] (4000)

G. LANGUAGE SETTINGS CHANGED
============================
NONE

H. CHANGE LOGS
============================
NONE

***********************************************************************************

I. TROUBLESHOOTING
============================
Please submit a ticket to our helpdesk at https://helpdesk.vpcart.com and our support team will assist you.

***********************************************************************************

J. FAQ
============================
NONE

***********************************************************************************
