VPCart 9.0 Google payment gateway Readme

Created : 12 April 2021
Last Modified : 15 April 2021

***********************************************************************************
Contents:

A. SUMMARY
B. FILE STRUCTURE
C. INSTALLATION INSTRUCTION
D. HOW IT WORKS
E. CONFIGURATION SETTINGS
F. DATABASE TABLES MODIFIED
G. LANGUAGE SETTINGS CHANGED
H. CHANGE LOGS
I. TROUBLESHOOTING
J. FAQ
K. COPYRIGHT NOTICE
L. TERMS AND CONDITIONS

***********************************************************************************

A. SUMMARY
==========
This interface is for use with Google Pay gateway.

Features:

Your customers card information is passed as token for extra security
Easy to use & setup with minimal settings in Modules Manager.
Well tested on modern browsers and mobile devices.

Both normal checkout and one-page checkout method are supported by this module.

To use this module, you must register an account first with Google Mechant Center.
You can register at Google Merchant sign up page.

IMPORTANT NOTE:
It is strongly recommended to have SSL certificate installed on shopping cart site for security and PCI compliance.

If you do not have any SSL Certificate in your current site, you can purchase SSL from us at:
https://www.vpcart.com/virtprog/instantssl1yr.htm

***********************************************************************************

B. FILE STRUCTURE
===================

Files included in the zip are:
- $READ_ME_FIRST_googlepay900.HTML
- gpay_execute.asp.asp
- gpay_gateway.asp
- gpay_process.asp
- gpayconfig.asp

- admin/gpay_setup.asp
- admin/gpay_setup_config.asp
- admin/gpay_setup_process.asp
- admin/sqlscripts/gpay/*

***********************************************************************************

C. INSTALLATION INSTRUCTION
============================

1. Upload the below files and folder to your VPCart 9.00 root folder.
- gpay_execute.asp
- gpay_process.asp
- gpay_gateway.asp
- gpay_process.asp
- gpay_onepagecheckout.asp
- gpayconfig.asp

2. Upload the below files to your ADMIN folder. If you have renamed your ADMIN folder, then this must be placed in the renamed folder.
- admin/gpay_setup.asp
- admin/gpay_setup_config.asp
- admin/gpay_setup_process.asp
- admin/sqlscripts/gpay/*

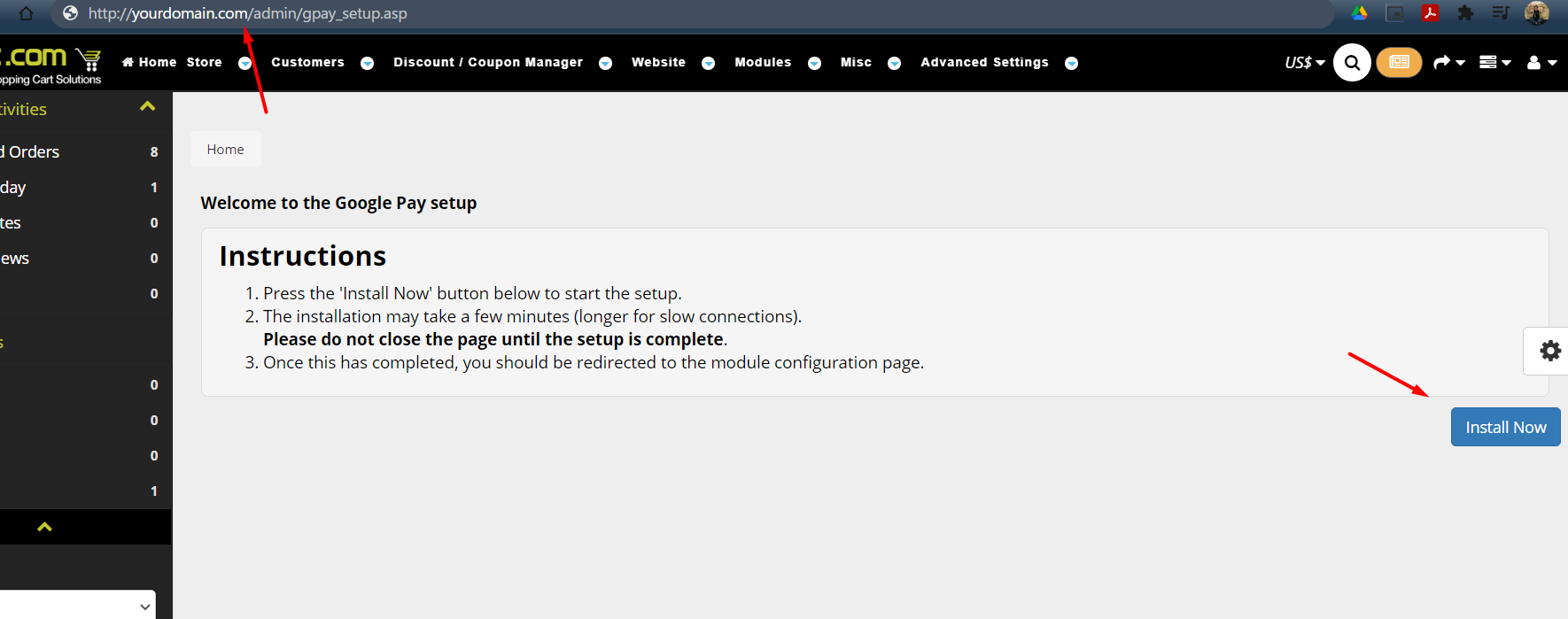

3. Log into super admin and execute page below:
http://www.yourdomain.com/<your admin folder>/gpay_setup.asp

Note: Replace the below with your VPCart site
{ www.yourdomain.com } : your site domain
{ your admin folder } : your admin folder

Click Install Now button.

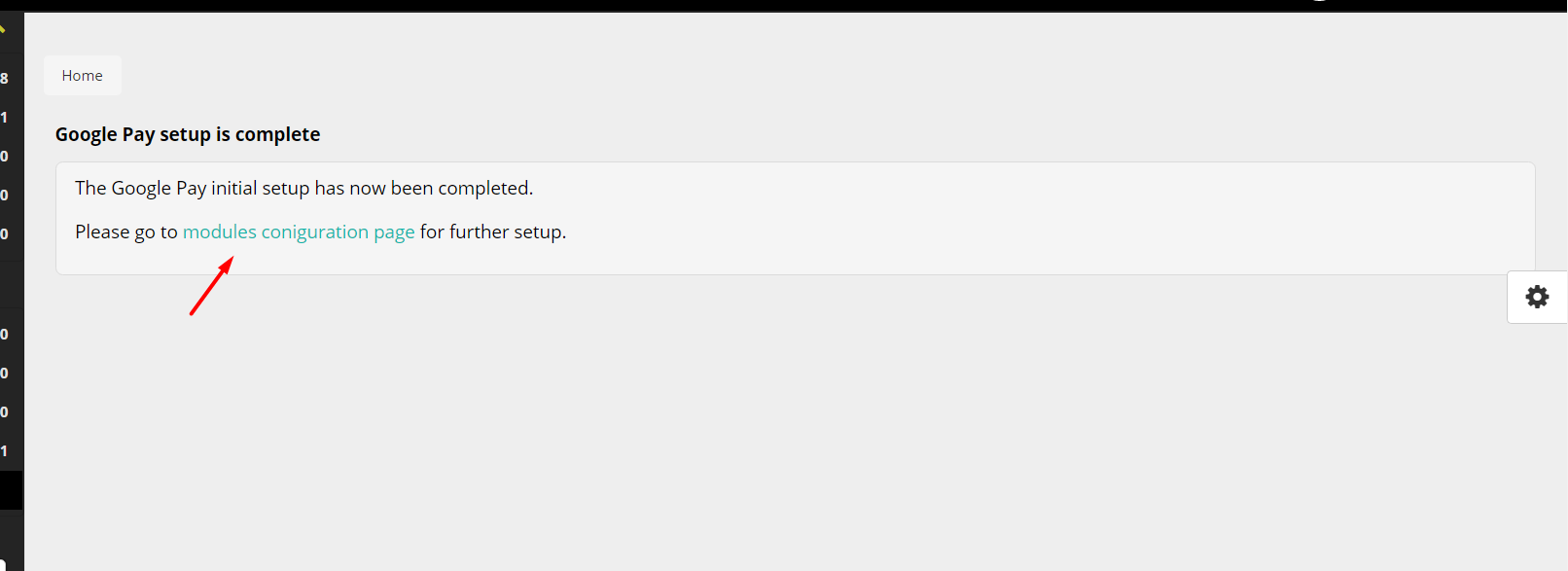

4. After installation completed, you should see message below:
_______________________________________________________
The Google Pay initial setup has now been completed.

Please go to modules configuration page for further setup.
_______________________________________________________

5. Please click the "modules configuration page" link to setup.

- Enable? : Set to Yes to enable Google Pay Payment gateway.

- Google Merchant Account Name: Please enter your Google Merchant registered name.
- Google Merchant ID: Please enter your Google Merchant ID.

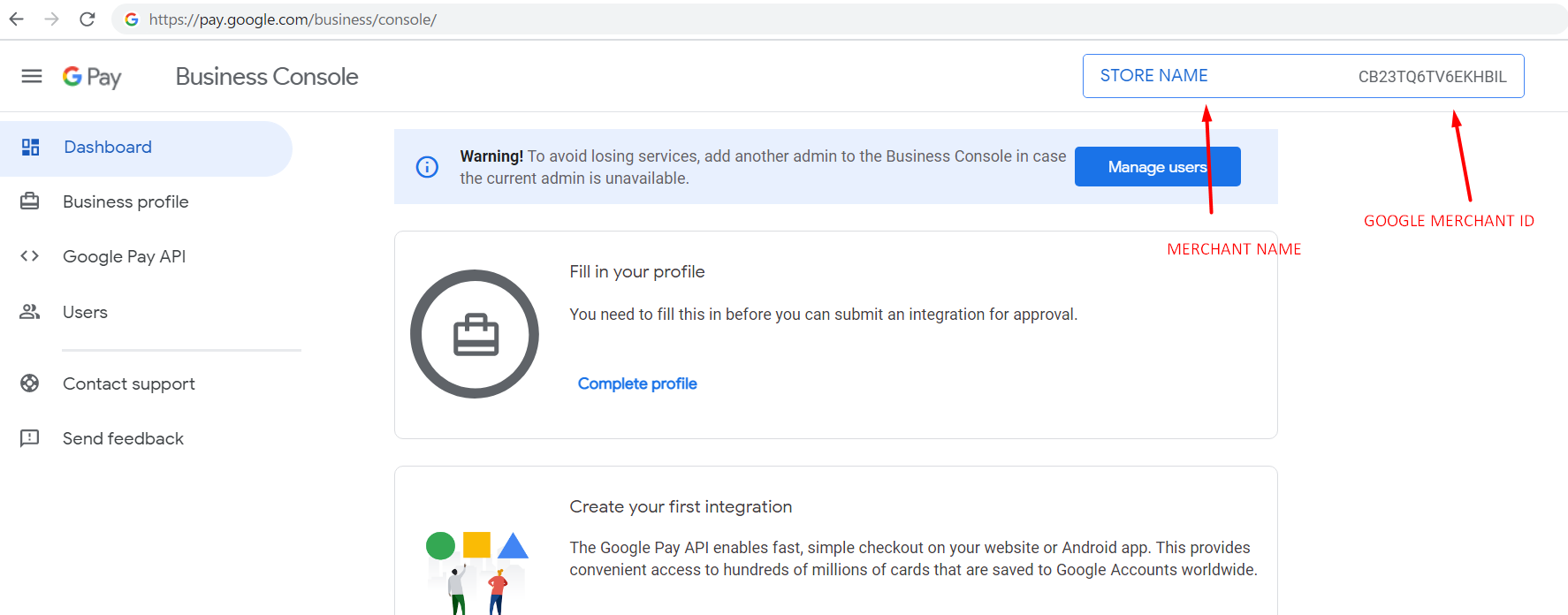

Note: you can get your Merchant Name and Merchant Id by accessing https://pay.google.com/business/console/

- Google-Pay Environment: set this field to TEST for test Environment and PRODUCTION for live.

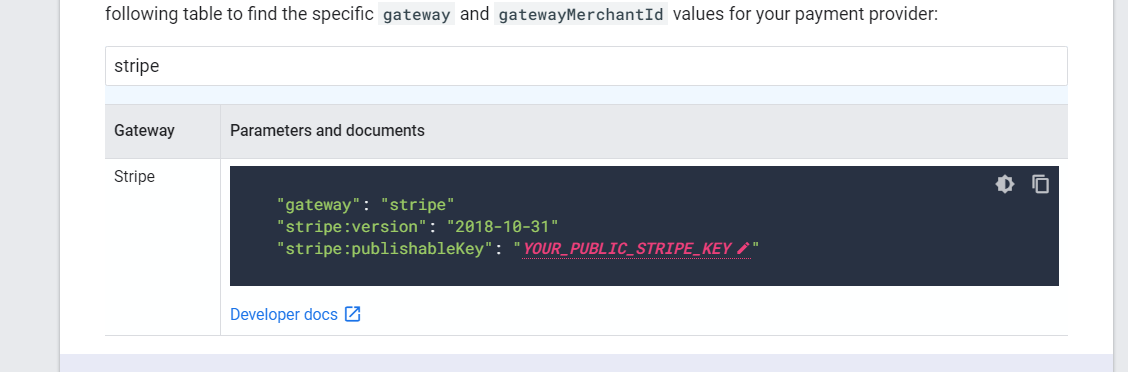

- Google-Pay Gateway: you can pick the gateway you want to accept the payment with google pay through to this Link
- Google-Pay Gateway Merchant ID / Public ID: Kindly refer to the gateway you selected.
- Google-Pay Gateway version. : fill this config if your gateway requires you to declare the gateway version like Stripe otherwise leave it blank.

https://developers.google.com/pay/api/web/guides/tutorial#tokenization

6. You are done.

One page checkout setup:

1. Open your shoponepagecheckout.asp

2. in validatepaymentmethod routine ( sub validatepaymentmethod ), look for case "paypal" and add these code below:

'900 : Google-Pay'
case "gpay"

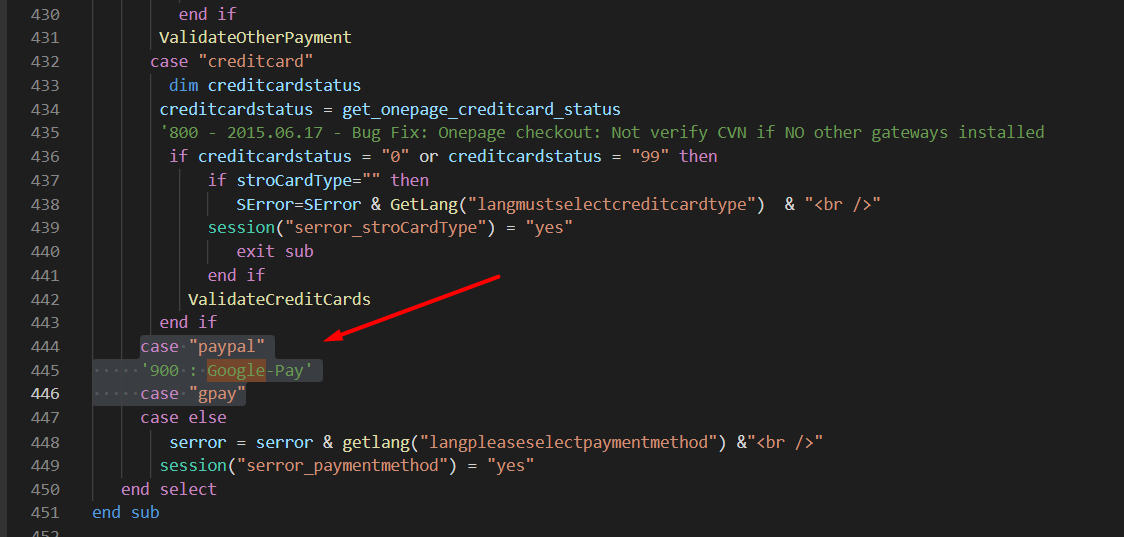

The code should look like this:

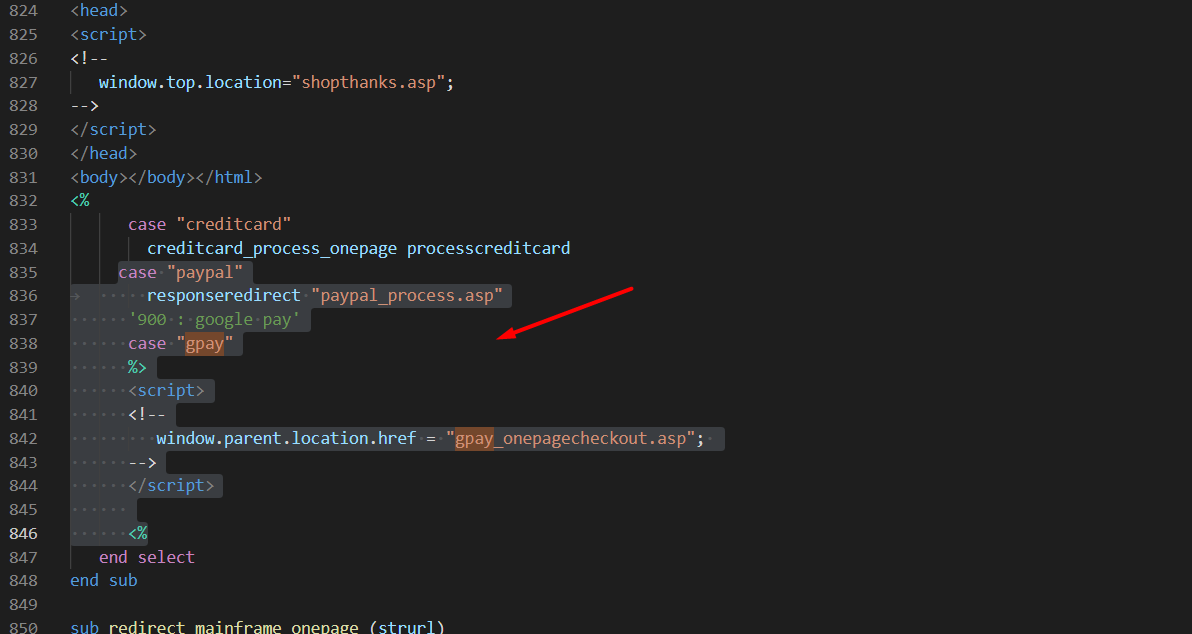

3. in the same file look for responseredirect "paypal_process.asp" code and add these code below:

'900 : google pay'
case "gpay"
%>
<script>

</script>
<%

The code should look like this:

4. Save and upload.

5. Open shoponepagecheckout_payment_subs.asp

6. look for code: if lcase(GetConfig("xpaypal")) = "yes"

7. insert these code after the "end if" condition of that script:

'900 : Google-Pay option'
if lcase(GetConfig("xpaypal")) = "yes" then
create_onepage_radio getlang("langgooglepay"), "payment_method", "payment_method_gpay", "gpay", paypalstr
create_onepage_paypal_wrapper "gpay_desc_wrapper", getlang("langgooglepay_desc"), paypalstr
end if

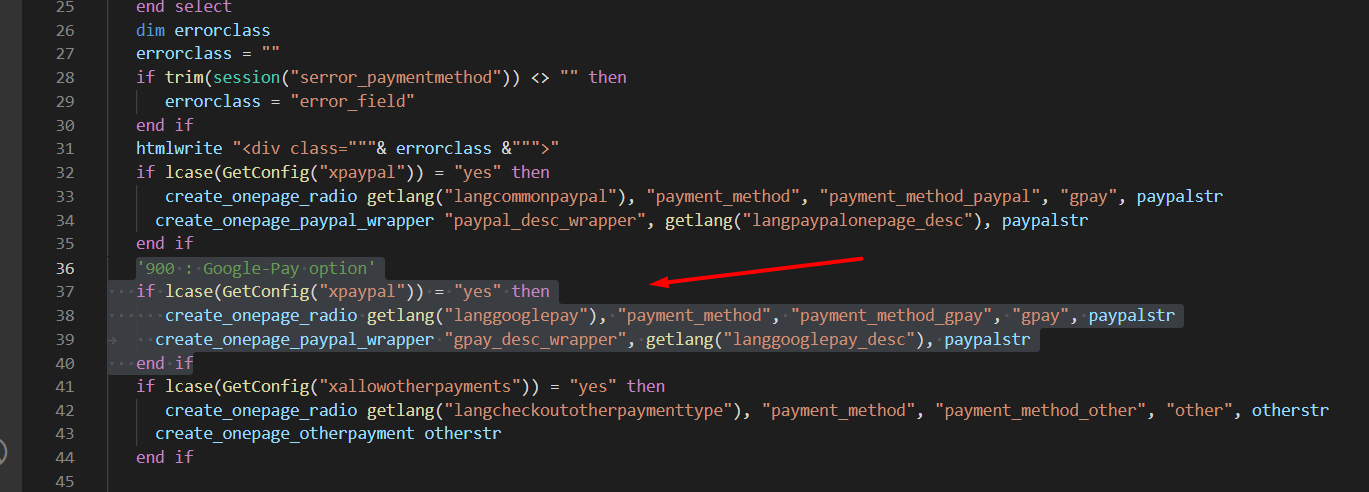

The code should look like this:

8. Save and upload.
9. Done.
***********************************************************************************

D. HOW IT WORKS
===============

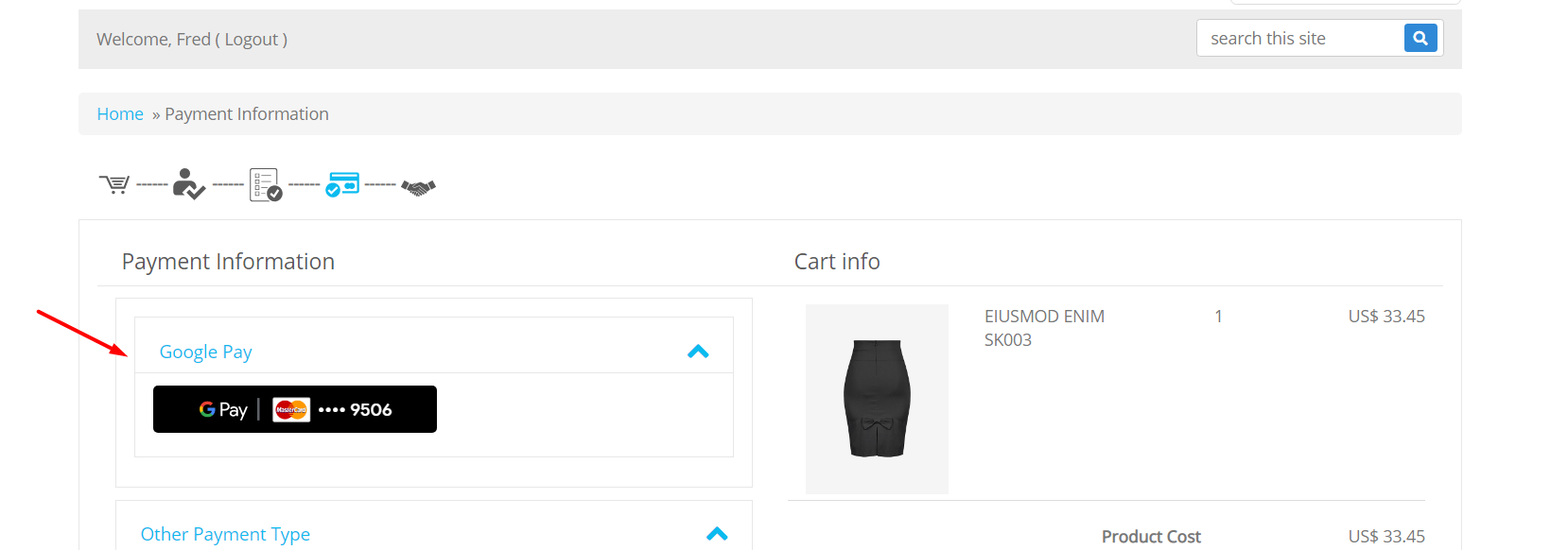

When customers do a checkout, they will see the Google Pay Section option in the Payment Form Section.

On a success payment, Google-Pay will return response with Payment Token ID and Status to your VPCart site.

VPCart will update the following Orders table fields as below eg :
ocardtype : GooglePay
oauthorization : Googlepay Token ID=tok_xxxxxxxxxxxxxxxxxxx Status=succeeded

***********************************************************************************

E. CONFIGURATION SETTINGS
=================

New configs:
- xgpay_enable
- xgpay_environment
- xgpay_gateway
- xgpay_gatewaymerchantid
- xgpay_gatewayversion
- xgpay_merchantid
- xgpay_merchantname

F. DATABASE TABLES MODIFIED
===========================

NONE

G. LANGUAGE SETTINGS CHANGED
============================

New language keywords added:

NONE

H. CHANGE LOGS
============================

NONE

***********************************************************************************

I. TROUBLESHOOTING
============================

Please submit a ticket to our helpdesk at https://helpdesk.vpcart.com and our support team will assist you.

***********************************************************************************

J. FAQ
============================

NONE

***********************************************************************************
