VPCart 9.0 DHL readme

DHL

Created : 28 June 2024
Last Modified : 27 September 2024

***********************************************************************************
Contents:

A. SUMMARY
B. FILE STRUCTURE
C. INSTALLATION INSTRUCTION
D. HOW IT WORKS
E. CONFIGURATION SETTINGS
F. DATABASE TABLES MODIFIED
G. LANGUAGE SETTINGS CHANGED
H. CHANGE LOGS
I. TROUBLESHOOTING
J. FAQ
K. COPYRIGHT NOTICE
L. TERMS AND CONDITIONS

***********************************************************************************

A. SUMMARY
==========
This interface is for providing shipping options by DHL.

***********************************************************************************

B. FILE STRUCTURE
===================

Files included in the zip are:
- $READ_ME_FIRST_dhl900.HTML
- dhl_base64.asp
- dhl_config.asp
- dhl_realtime.asp
- dhl_subs.asp
- json/aspJSON1.17.dhl.asp
- admin/shopa_dhl_config.asp
- admin/shopa_dhl_subs.asp
- admin/dhl_setup.asp
- admin/dhl_setup_config.asp
- admin/dhl_setup_process.asp
- admin/help/shoph_dhl.asp
- admin/js/dhl/dhl.css
- admin/js/dhl/dhl.js
- admin/sqlscripts/dhl/*

***********************************************************************************

C. INSTALLATION INSTRUCTION
============================

1. Modify below file:

1a. Open shopshipping_subs.asp

1b. Locate this code:

After this code, please insert:

1c. Locate this code: (Estimate line 182, within routine sub Add_Custom_shipping_options)

'800 - 2015.05.17 - Enhancement: Insert FedEx Shipping code placeholder
if check_fedex_shipping_exist then
dyninclude "fedexinterface.asp"
GetShippingPricesFedex
end if

After this code, please insert:

'ADD DHL
if check_dhl_shipping_exist then
GetRealtime_dhl
end if

1d. Save file shopshipping_subs.asp

2. Upload the below files to your ADMIN folder. If you have renamed your ADMIN folder, then this must be placed in the renamed folder.
- admin/shopa_dhl_config.asp
- admin/shopa_dhl_subs.asp
- admin/dhl_setup.asp
- admin/dhl_setup_config.asp
- admin/dhl_setup_process.asp
- admin/help/shoph_dhl.asp
- admin/js/dhl/dhl.css
- admin/js/dhl/dhl.js
- admin/sqlscripts/dhl/*

3. Upload below files to your Cart folder.
- dhl_base64.asp
- dhl_config.asp
- dhl_realtime.asp
- dhl_subs.asp
- json/aspJSON1.17.dhl.asp

4. Log into super admin and execute page below:
http://www.yourdomain.com/<your admin folder>/dhl_setup.asp

Note: Replace the below with your VPCart site
{ www.yourdomain.com } : your site domain
{ your admin folder } : your admin folder

Click Install Now button.

5. After installation completed, click Next button:

6. You will be redirected to DHL configuration page.

DHL settings:

- How to create App?
Before setting up with DHL, you are required to register with DHL developer account from https://developer.dhl.com/.

After register with DHL, you are required to create an App with your DHL account.

- Do you want to enable DHL module?
Set to Yes to enable DHL module.

- Do you want to run in trace mode?
Set to Yes to enable trace mode for developer purpose.

- Do you want to run in test mode?
Set to Yes to enable test mode.

- What is your DHL account number?
Fill in your DHL account number.

- How to get API key and API secret?

Please follow below guide to create DHL API key and API secret.

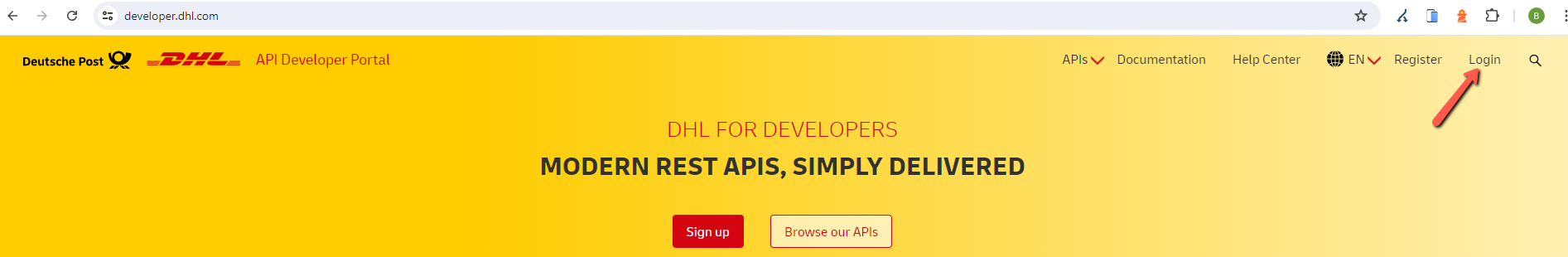

1. Browse and open DHL developer portal, then click Log in button at top.

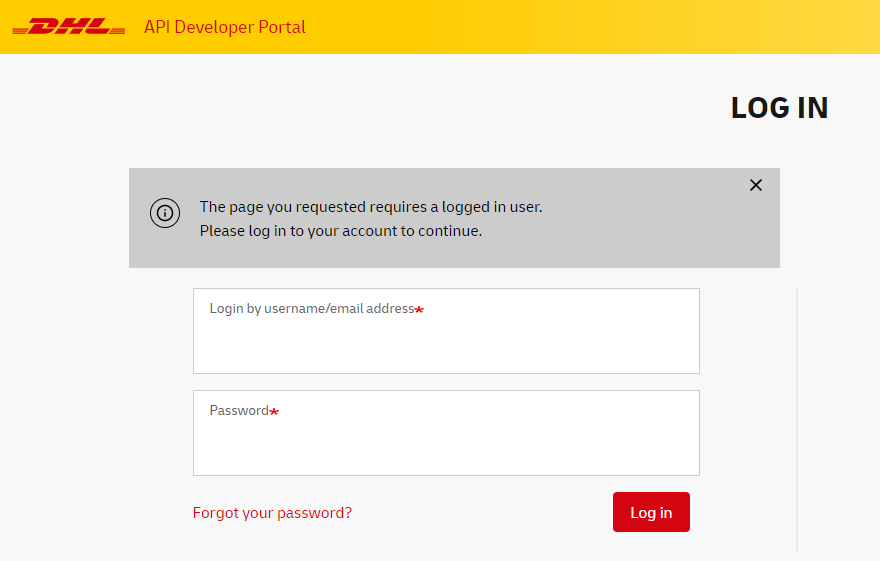

2. Fill in your DHL username and password, then click Login button.
Notes: Register an account if you do not have the developer account.

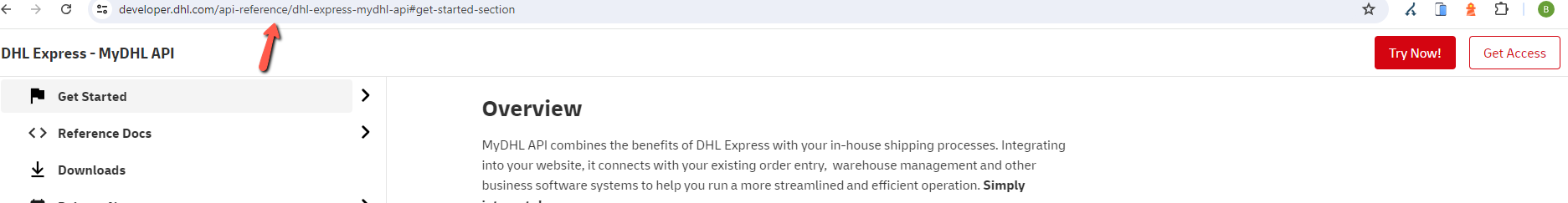

3. After log into the account, you can now request a API key and API secret for the DHL Express MyDHL API by going here- https://developer.dhl.com/api-reference/dhl-express-mydhl-api#get-started-section

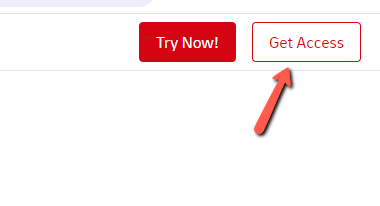

4. Click Get Access in the right hand corner, to request your API keys

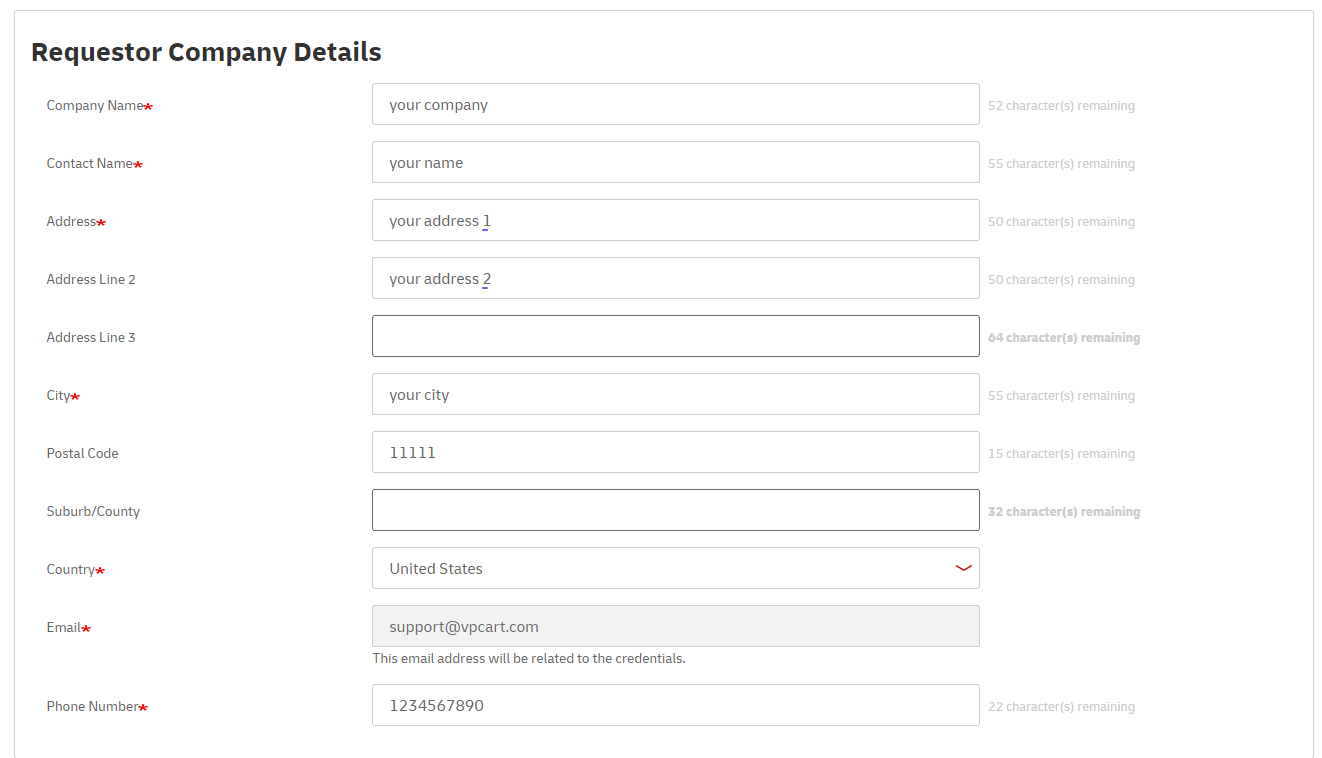

5a. Enter all required information.

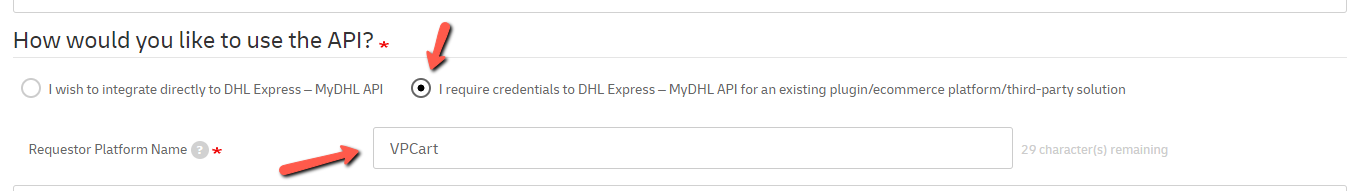

5b. In the section that asks How would you like to use the API? Select the I require credentials to DHL Express-MyDHL API for an existing plugin. Under Requestor Platform Name, type in the name of the software you will be using the credentials in.

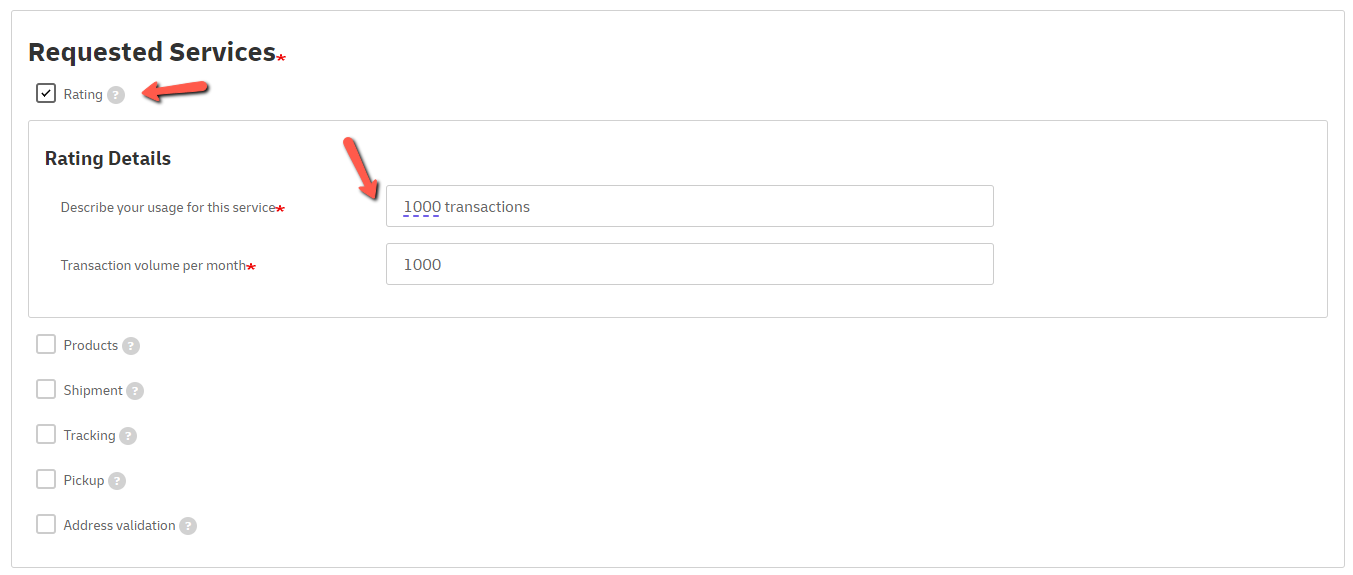

5c. Choose the requested services you will be using. And type in about how many requests you anticipate a month.
Please check Rating as the service.
*These numbers are not tied to your credentials and will not impact the credentials if more requests are made than noted on the registration.

6. After your request for an API Key has been submitted, you will be directed to a DHL site confirming the request. You will also receive an email confirming that your request was received.
DHL would take few days to validate and approve your API access.

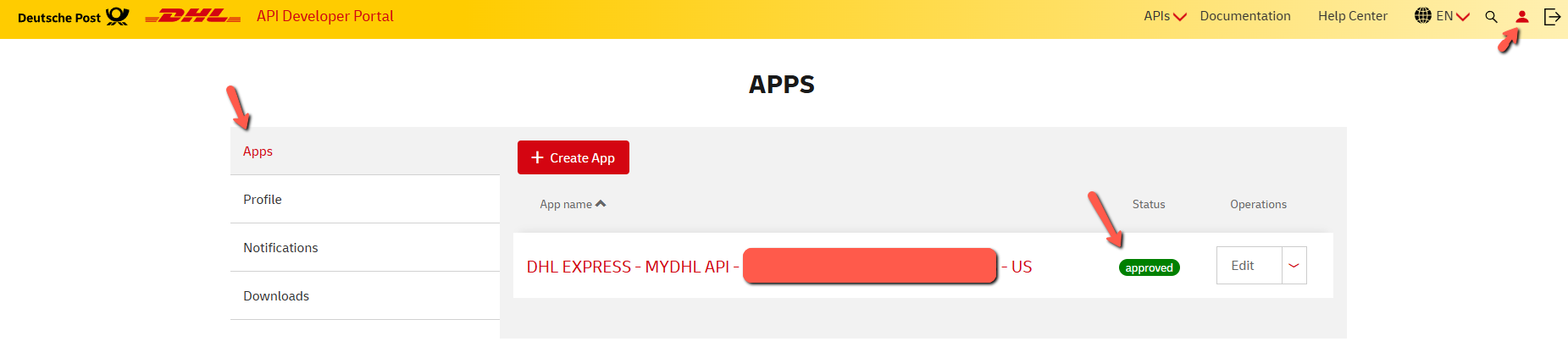

7. You can also view your credentials in the developer portal in the user dashboard.
Click on the Person Icon to access the User Dashboard.
Then click on Apps
You also can check the App status from this page.

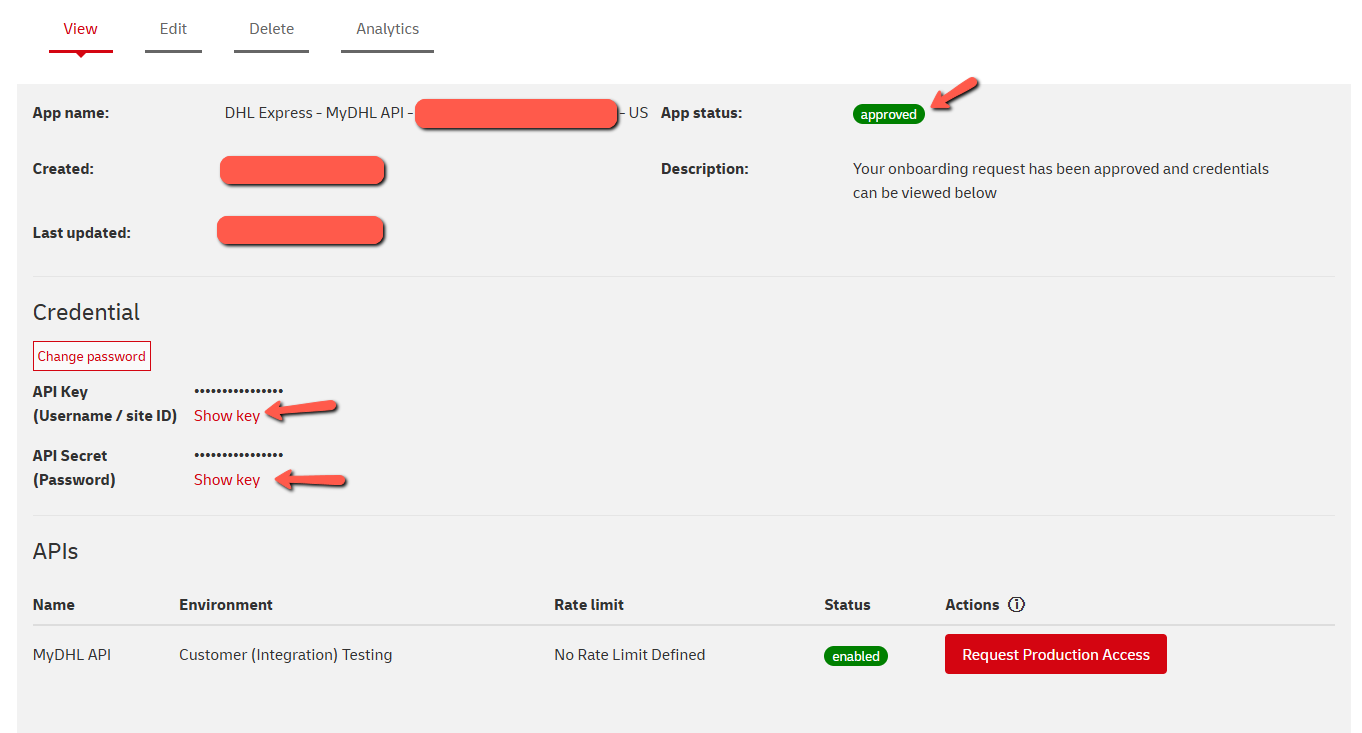

8. If App status is approved, click on the App itself and you will be redirected to the App detail page.
Click Show Key to see API Key and Secret- this is the API key and API secret to use in VPCart.

- Setup source profile
1. Please fill in your company and address information where your shipping source from.

2. You may set to Yes to field "Do you want to use supplier address as source address?", if you would like to send your items from your suppliers.

- Setup dimension profile - global

- Please specify the unit measurement code of package dimensions and weight.
The unit measurement of the dimension and weight.

- Please fill in your parcel width, lenght and height under this section.

- Setup dimension profile - individual product
- You may setup the dynamic parcel width, length and height according to each product, by select the products fields that carry the information of width, length and height.

- Miscellaneous

- Do you want to allow all products to be shipped separately?
Set to Yes to ship all products sparately.

- Do you want to allow certain product to be shipped separately?
Set to Yes to ship certain product sparately.

- What is the field specified in products table to identify to ship product separately?
A field in products table to identify the product to be shipped separately.

- Do you want to split packages automatically if over certain weight?
Set to Yes to split packages automatically.

- What is your weight (lbs) to split packages automatically?
The weight to split packages automatically.

- Is your shipment is dutiable (Yes) or non dutiable (No)?
Yes if you need to declare custom to your shipment.

***********************************************************************************

D. HOW IT WORKS
===============

Provide shipping options from DHL.

***********************************************************************************

E. CONFIGURATION SETTINGS
=================

Refer to DHL configuraiton page

F. DATABASE TABLES MODIFIED
===========================

NONE

G. LANGUAGE SETTINGS CHANGED
============================

New languages for DHL

H. CHANGE LOGS
============================

2024.09.27 - DHL: Weight only allow 3 digit in decimal
2024.09.27 - DHL: shipaddress only allow 45 chars

***********************************************************************************

I. TROUBLESHOOTING
============================

Please submit a ticket to our helpdesk at https://helpdesk.vpcart.com and our support team will assist you.

***********************************************************************************

J. FAQ
============================

NONE

***********************************************************************************
