Created : 20 April 2016
Last Updated: 01 April 2020
***********************************************************************************
Contents:
A. SUMMARY
B. FILES STRUCTURE
C. INSTALLATION INSTRUCTIONS
D. CHANGES
E. COPYRIGHT NOTICE
F. TERMS AND CONDITIONS
***********************************************************************************
A. SUMMARY
==========
This interface is for use with CyberSource Secure Acceptance - Silent Order Post (SA SOP) Payment Gateway
You must have SSL installed to use this payment gateway.
This newer version of cybersource SA SOP is not using any XML post method, so no need to worry about TLS thing.
It is using HTTP POST method to send and received payment data.
For more information on this gateway, please visit http://www.cybersource.com
***********************************************************************************
B. FILES STRUCTURE
===================
Files included in the zip are:
Refer to the package
***********************************************************************************
C. INSTALLATION INSTRUCTIONS
============================
1. Upload all the files into your shopping cart folder.
2. Log into super admin and execute setup file, eg: http://www.yourdomain.com/yourshoppingcartfolder/youradminfolder/cybersourcesasop_setup.asp
3. After setup the module, would be redirected Module configuration page for configure the module
IMPORTANT NOTE :
To get your Cybersource Access key and Secret key, folow these steps:
---------------------------------------------------------------------
- Login to your cybersource Business Center e.g. https://ebc.cybersource.com/

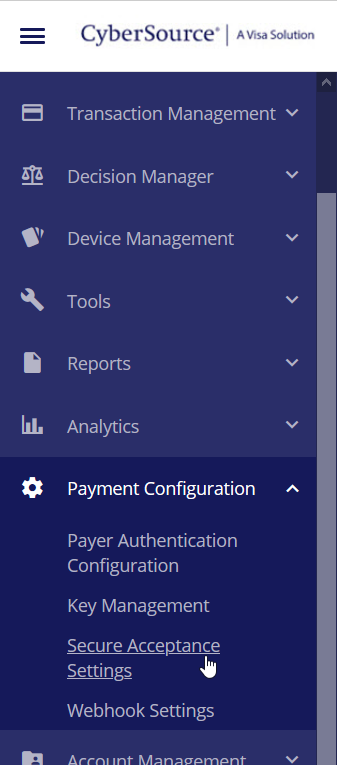

- In the left panel, go to : Payment Configuration > Secure Acceptance Settings
-

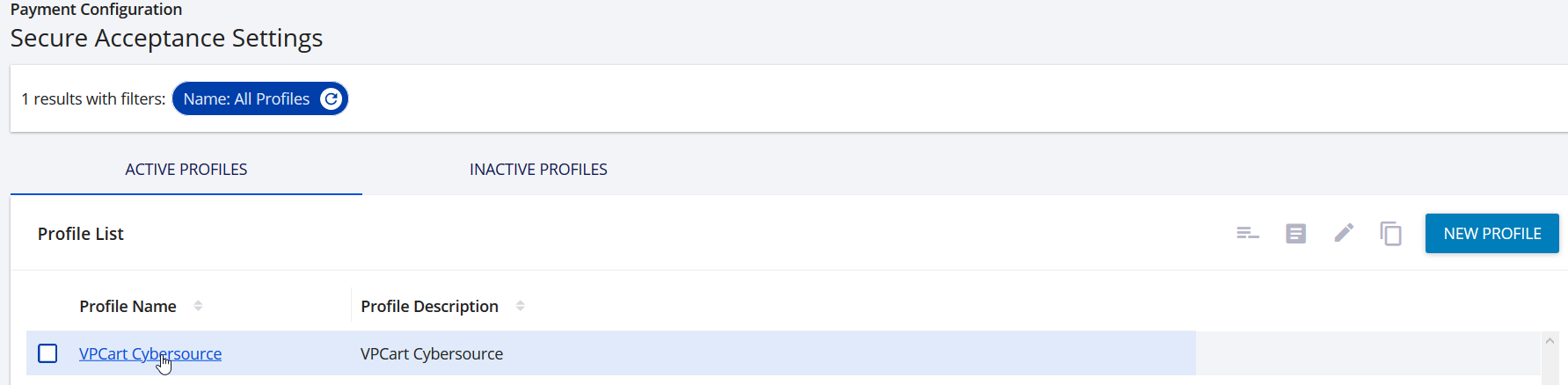

Click your existing active profile.
Note: If you do not have any active profile, please click NEW PROFILE button or contact your Cybersource representative.
- Then click the pencil edit icon on the top right.
- Click Confirm.
- Then click menu Security.

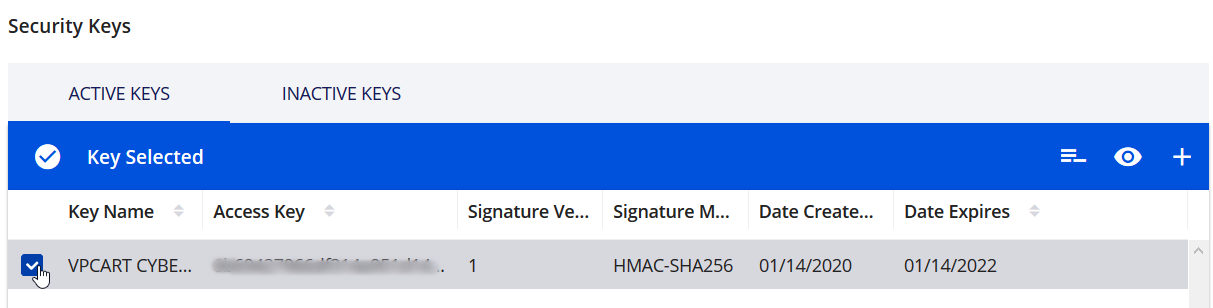

- Tick the checkbox and click the eye icon.
NOTE: If you have no key yet, please click the + button to create new key.

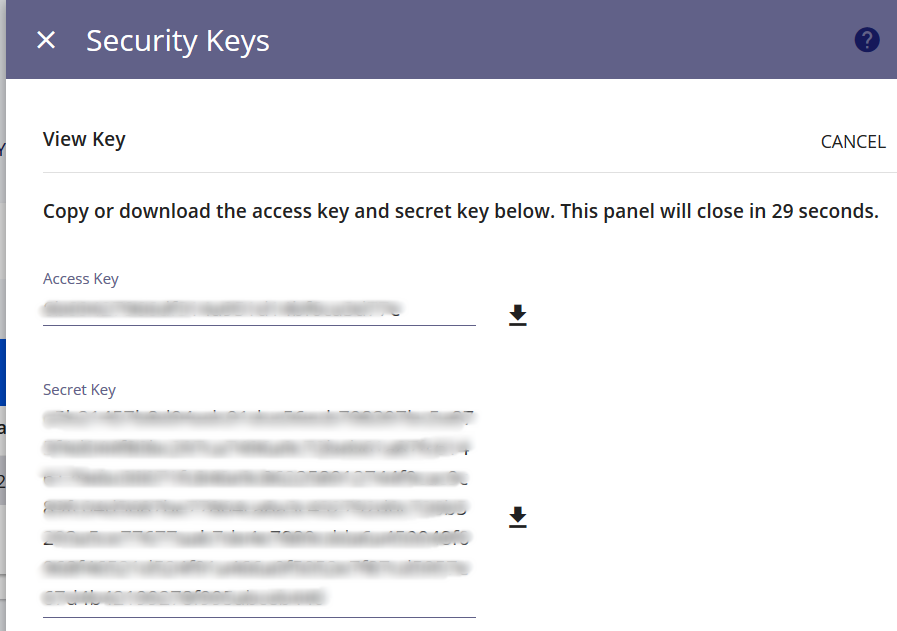

- After clicking the eye icon, you should be presented with Access Key and Secret Key.
- Copy the value in the "Access Key" and paste into your modules manager of the cybersourcesasop for the relevant field.
- Copy the value in the "Secret Key" and paste into your modules manager of the cybersourcesasop for the relevant field.
To get your Cybersource Profile ID, folow these steps:
------------------------------------------------------
- Login to your cybersource Business Center e.g. https://ebc.cybersource.com/
- In the left panel, go to : Payment Configuration > Secure Acceptance Settings
-
Click your existing active profile.
Note: If you do not have any active profile, please click NEW PROFILE button or contact your Cybersource representative.

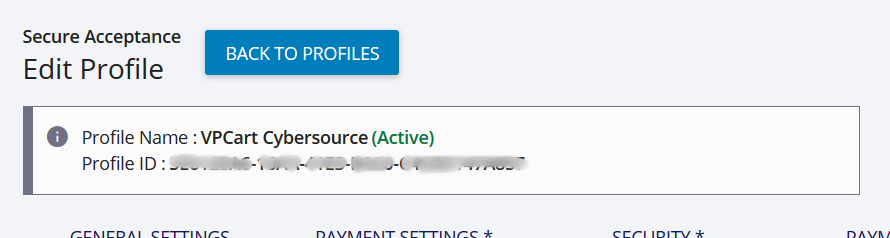

- You will see your profile id there e.g. Profile ID: xxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxx
How to Set Response URL
--------------------------------
You must login the Cybersource Business Center and set the Customer Response URL to use as response URL.
Please follow these steps :
- Login to your cybersource Business Center e.g. https://ebc.cybersource.com/
- In the left panel, go to : Payment Configuration > Secure Acceptance Settings
-
Click your existing active profile.
Note: If you do not have any active profile, please click NEW PROFILE button or contact your Cybersource representative.
- Then click the pencil edit icon on the top right.
- Click Confirm.
- Click menu CUSTOMER RESPONSE.
- In the field "Transaction Response Page" please choose "Hosted By You" and enter page url eg:
https://www.example.com/cybersourcesasopresult.asp
NOTE: Please replace www.example.com with your vpcart site url.
- Click SAVE button.
Testing Card
------------
For testing purpose, you can use the test details below:
Visa#: 4111111111111111
Expiry Date: 12-2022
CVV: 123
Payment Notification
--------------------
1. For successful payment, vpcart orders table will have information stored as below eg:
ocardtype : CyberSource Secure Acceptance
oauthorisation : ACCEPT, Auth code=xxxxxxx, Auth trans no=xxxxxxxxxxxxxx
2. For unsuccessful transaction, vpcart orders table will have information stored as below eg:
ocardtype : CyberSource Secure Acceptance- Failed
oauthorisation : Reject Code:102
ERROR
card_number
Request parameters are invalid or missing
***********************************************************************************
D. CHANGES
=================
2016.04.20 - has been upgraded to very latest integration "CyberSource Secure Acceptance - Silent Order Post" using base64 SHA-256 encryption.
2020.01.30 - fix for parameter transaction_uuid to pass an unique value using timestamp rather than passing order id. Better payment error information in orders data. Also data validation handling on expiry date format.
2020.04.01 - auto fill "-" in expiry date
***********************************************************************************
